UHDAS Gui Tour

UHDAS Overview

“UHDAS” refers to a suite of programs designed for the serial logging of ADCP and supporting data streams. It can be started from the command line or by clicking the icon bearing the UHDAS logo on the UHDAS computer’s task bar.

Most UHDAS installations use the name “currents” for this computer.

Initializing the program brings up a GUI interface through which the ADCP Operator chooses the configurable parameters and controls logging through a number of tabbed screens. To learn more about the screens, take the UHDAS Gui tour following the links at the bottom of this page. The tour pages are generic examples for a combined os38nb interleaved and nb150 installation.

For a quick reference on how to start and end data acquisition look at the instructions for ADCP Operators

IMPORTANT:

ONLY the official ADCP Operator should make changes to the ADCP acquisition configuration. There are only a few configurable parameters. Should you want to make changes, please make the request to the ADCP Operator and help us to maintain the integrity of your UHDAS acquisition system.

UHDAS performs the following tasks:

• creates a directory structure to receive the serial data

• reads configuration files for setup

• initializes the ADCPs via a serial dialog

• controls logging of ADCP data and other serial data streams

• starts additional threads related to acquisition or processing such as:

  • parsing raw serial messages and writing them in a binary format
  • creating binary files with navigation and attitude gridded to individual ping data with time corrections applied
  • backing up of data to additional disks
  • output of a speedlog message

Additionally, near real-time processing runs simultaneously with UHDAS data acquisition. The processing is a suite of scripts that periodically

• edit and average single-ping data into 5-minute profiles
• makes plots of the last 5-min averages
• perform full CODAS processing on the averaged data
• make overview plots of the last few days of data.

Follow this link for a more detailed list of UHDAS tasks

Control Tab

(full size)

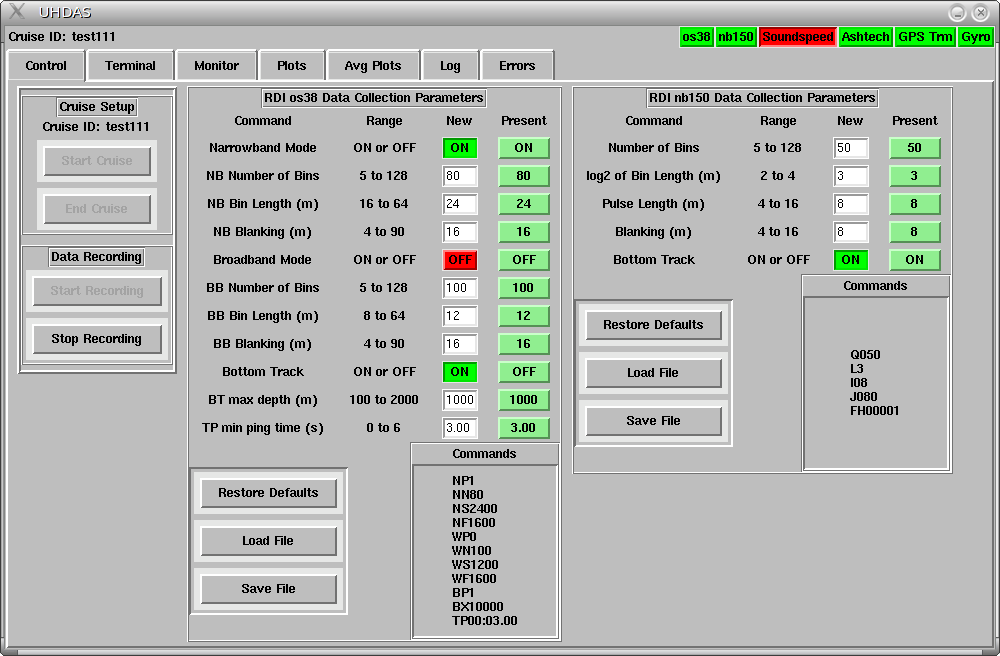

When UHDAS starts, it starts in the Control Tab. This location controls three aspects of UHDAS:

1. Cruise Setup: Start or End a cruise. (By cruise we mean creating or linking to specific directories on the internal hard drive and the external USB drive.)
2. Data Recording: Start or Stop data recording. (By recording we mean actually acquiring data from the instruments and writing it to the cruise directories created in step 1).
3. ADCP Collection parameters: eg. OS38 and NB150

These aspects are described below.

Cruise Setup

Start Cruise

This asks the user for a cruise identification, which should be a name like “nbp0407” or “lmg0413a”. This name is used to create the directory /home/data/cruiseid which will support logging and processing for both ADCPs. UHDAS also creates a symbolic link from the generic name “/home/adcp/cruise” to the new logging directory.

After creating this directory and link, UHDAS is ready for data logging.

It is possible to resume logging to a previous cruise, e.g., if you stopped both data acquisition and the cruise when all you really wanted to do was to stop data acquisition. Enter the previous cruise name. UHDAS will tell you it exists and ask you to confirm that you want to continue. Answer “Yes”.

End Cruise

After data logging is stopped, the user can choose “End Cruise”. This tells UHDAS to clean up temporary files from the (now finished) cruise, copy several directories to /home/data/cruiseid for archiving purposes, and remove the symbolic link “/home/adcp/cruise”. Final copying of files to backup disks takes place at this stage and may take some time – be patient as UHDAS completes its work. It may take up to 15 minutes. It is important to run “End cruise” prior to unmounting the USB drive, since this step copies the last of the data to the drive.

It is possible to resume logging to a previous cruise, e.g., if you stopped both data acquisition and the cruise when all you really wanted to do was to stop data acquisition. Choose to “Start Cruise” and enter the previous cruise name. UHDAS will tell you it exists and ask you to confirm that you want to continue. Answer “Yes”.

Data Recording

Start Recording:

Data logging (recording) can only begin if a cruise has been started (see above).

When the “Start Recording” button is pushed, UHDAS starts a dialog with each of the ADCPs in succession, displaying the dialog in the Terminal Tab. Once communication has been established with all ADCPs, it turns on data acquisition for each of the other configured serial inputs, and switches over to the Monitor Tab for display. All logging is started with this button.

Stop Recording:

All data logging is stopped with this button. A cruise can only be ended if data recording is stopped.

ADCP Collection Parameters

Each ADCP has a default configuration which is available for viewing and modification. Except for toggling bottom track mode OFF or ON, these parameters should never be changed. Default parameters for each instrument are contained in a file that is read by UHDAS when it starts. Values in the gui can be entered at any time, but only take effect when data recording is (re)started.

To toggle bottom tracking mode, click “Stop Recording”, (wait a few seconds for it to respond). All data logging will stop. Then click the ON/OFF button for bottom tracking for the instrument(s) of interest, and click “Start Recording”. All data logging will start again.

In this example:

NB150:

This instrument is a higher frequency than the OS38 and is capable of much higher vertical resolution. Its range is only 200-300m on the icebreakers, because of the presence of the protective window. The NB150 is set with 8 m bin size.

OS38:

Ocean Surveyors are capable of running in either narrowband or broadband mode. Narrowband mode has slightly deeper profiling than broadband mode but lower resolution; broadband mode has higher resolution than narrowband mode at the expense of depth penetration. The Ocean Surveyor is also capable of interleaving these pings, which is what we prefer. We have defaults set up for bottom track ON, 12 m bins in broadband (bb) mode, and 24 m bins in narrowband (nb) mode. Our processing treats these data streams as if they came from separate instruments, though work is underway to combine them into a high-resolution, deep-profiling product.

Terminal Tab

(full size)

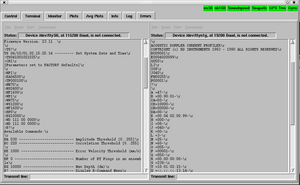

When UHDAS starts, it starts in the Control Tab. After “Start Recording” is selected, UHDAS moves to the Terminal Tab. This page shows a dialog with each instrument in turn, as communication is established and commands are sent. When pinging commences, UHDAS moves on to the Monitor Tab.

Before starting data recording, one can use these terminal tools to communicate with the ADCPs (or other instruments) for diagnostic purposes. When “Start Recording” is pressed (in the Control Tab), the communications settings in the Terminal Tab are reset to the defaults and a dialog is established with each of the ADCPs in turn.

Monitor Tab

UHDAS shows the status of data logging in 3 locations:

1. the Monitor Tab
2. small colored buttons in the top right corner of the UHDAS gui
3. the Log Tab (which has errors related to the logging code – used for diagnostics)

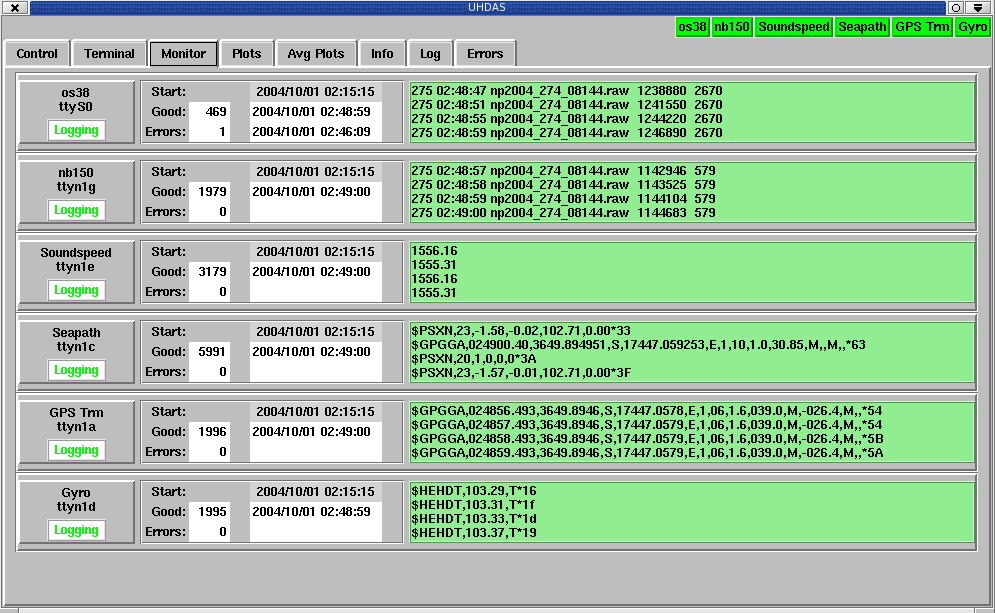

Each serial data stream is associated with a horizontal panel containing information about the serial port, instrument being logged, duration of logging, and a green panel with serial messages.

If data acquisition fails for some reason (serial port failed, instrument stopped transmitting...) then the time of current logging will turn red and the colored button (for that instrument) at the top right will also turn red.

Specifically:

All data streams are logging

(full size)

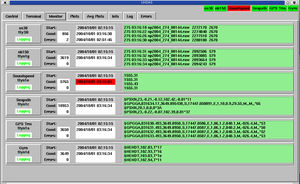

One datastream is not logging

(full size)

Other Tabs

Plots	5-minute profile plots
Avg Plots	3-day vector plots
heading	heading plot (eg. to monitor Ashtech)
log	text version of dialog with ADCPs in terminal window. This log is saved to the disk and the name of the text file is displayed by UHDAS
errors	errors from the logging software.

UHDAS Control Files

All control or configuration files used by UHDAS (for logging or for subsequent processing) are stored in /home/adcp/config. Organizing these files by the programs that use them we have:

UHDAS Gui (logging and parsing)

If a serial port fails or an instrument is added or subtracted from the expected assemblage, that must be changed in the file “sensor_cfg.py”. The other two (os38_default.cmd and nb150_default.cmd) should not be changed.

filename in: /home/adcp/config	used for	when to change it
sensor_cfg.py	for each instrument, sets up serial port, baud rate message name (eg. “gga”) logging directory filename (prefix, format)	Set up during an installation change when a serial port fails or instrument changes
os38_default.cmd	default values for 38KHz Ocean Surveyor ADCP	probably never
os75_default.cmd	default values for 75KHz Ocean Surveyor ADCP	probably never
os150_default.cmd	default values for 150KHz Ocean Surveyor ADCP	probably never
wh300_default.cmd	default values for 300KHz Workhorse ADCP	probably never
nb150_default.cmd	default values for 150KHz Narrowband ADCP	probably never

UHDAS (DAS.py, the gui which runs the underlying Python and C code) needs sensors_cfg.py to create the directories into which data recording occurs, and needs the *_default.cmd files to correctly initialize the ADCPs.

---

... the next stage: processing and plotting: As the data are being logged, Matlab jobs are called to look at pieces of it and assemble it into meaningful numbers (ocean velocities, quality indicators, and backscatter strength). These matlab jobs may be spawned by UHDAS but they are fundamentally different, since they are not run in a real-time mode. This second stage is work in progress. If the processing fails, we apologize, but please DO NOT try to get it going: as long as logging is working, the raw data will be available for science after the cruise. DO NOT RISK THE DATA ACQUISITION. See UHDAS details for more detail.

The files below are used for processing (all done in Matlab) and plotting (python scripts drive matlab plotting routines).

UHDAS: setup for processing and plotting

All defaults for processing and plotting are now consolidated in one python file, /home/adcp/config/procsetup_onship.py. It is not recommended that this file be changed, except under rare circumstances. This file contains information about:

• processing

  • averaging interval
  • transducer angle
  • top bin to plot

• email information
